How to scale a design from the catalog (a tiny house!)

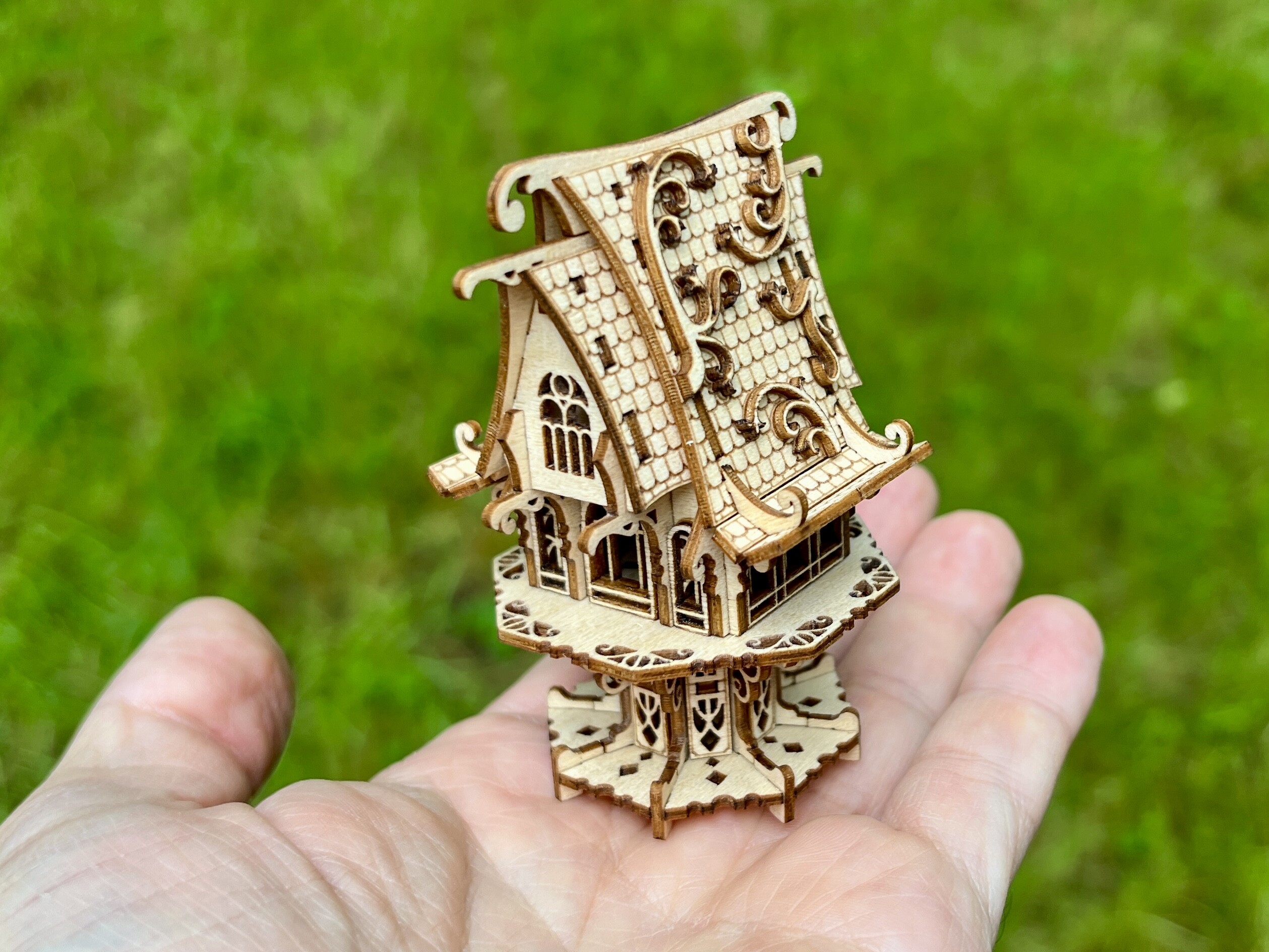

I made a catalog design! I pretty much never do catalog designs, but I was interested to see if I could scale it down to use the 1/16" plywood we talked about a while back.

Short version, yup!

Longer version:

We have talked about scaling design theory in the past but I thought this was a good time to give a practical example.

I know this was designed for PG medium plywood, but that isn’t precise enough to work with, I need to know exactly what the slot thickness is so I can convert it to the desired slot width of 0.057". To do that:

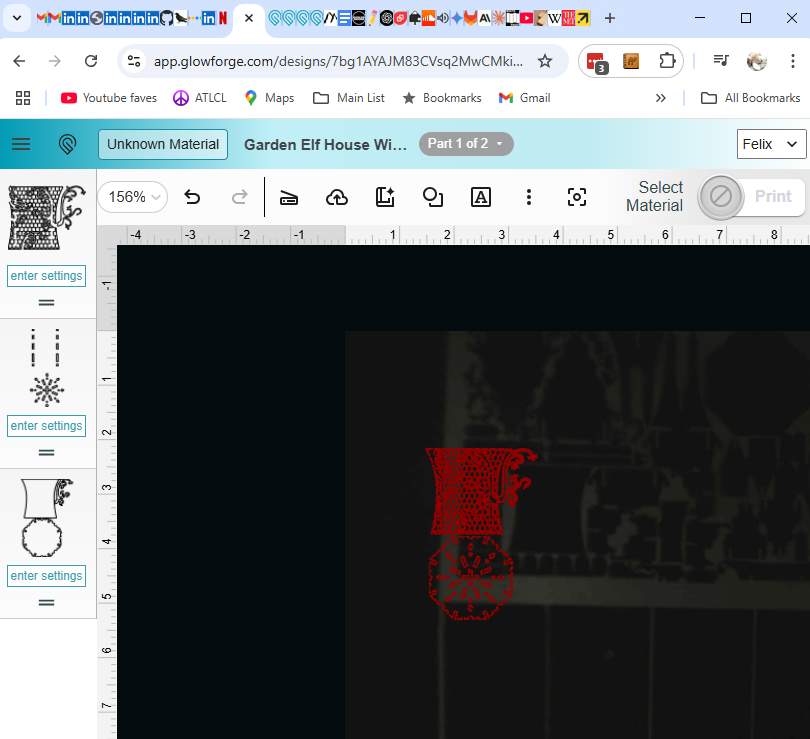

  • Load the design

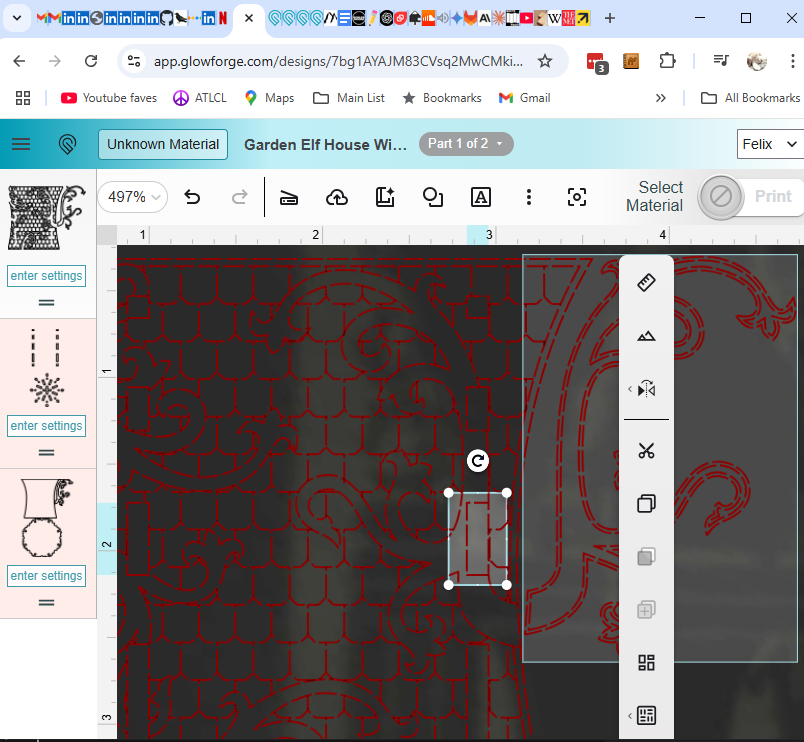

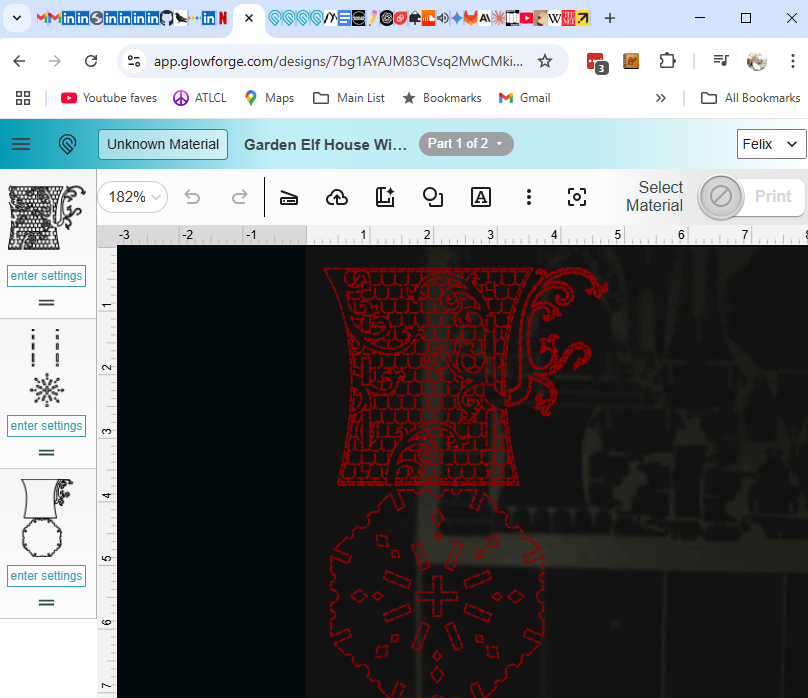

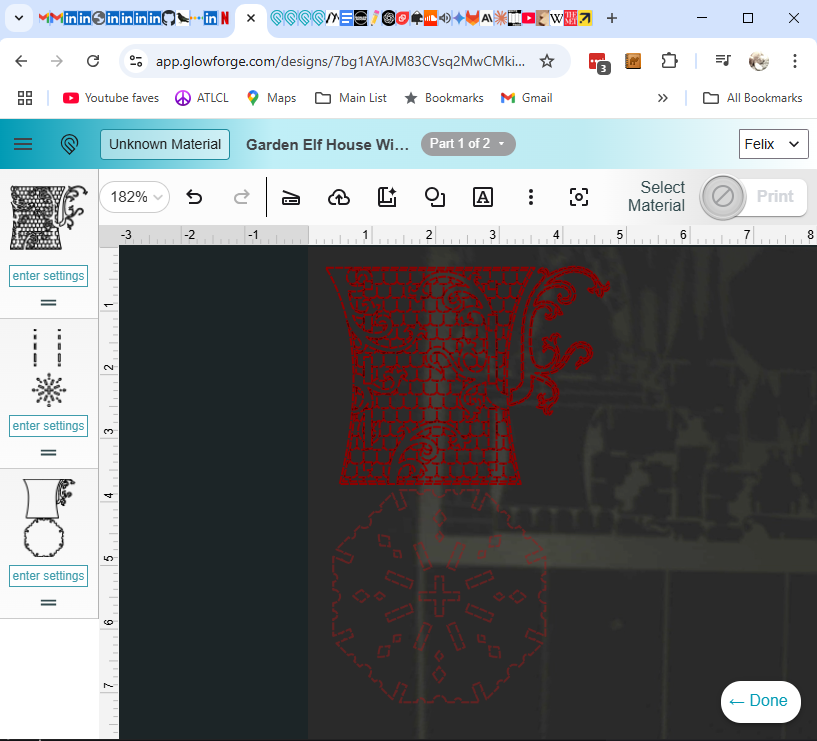

  • Find a nice horizontal or vertical slot [choosing horizontal or vertical will make measurement easier]. There’s a good one in the roof (top part of this page of the design), to get to it I need to enter that group. Double-click on the roof part, it’ll let you work with individual parts of the group. You’ll know you’re in the right place when you see the “done” button

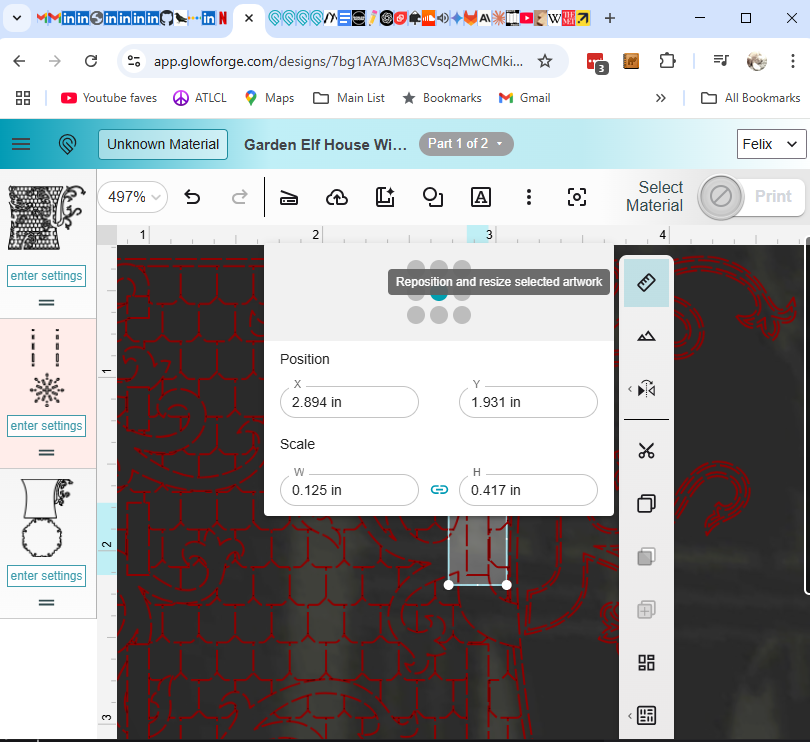

  • Now carefully select the slot you want and then use the ruler tool to get its precise size. We need to know the width.

  • Got it… Ruler…

  • You can see the original slot width is 0.125". Great. Jot that down. (If using a horizontal slot, then you’d want to know its height)

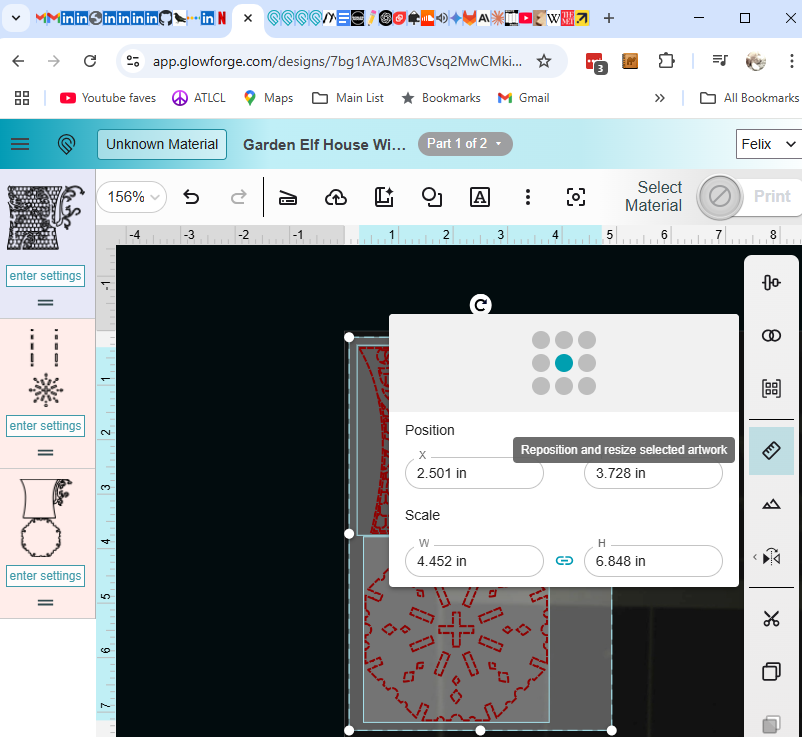

  • Now click done to leave the group and select the entire design. Check its width:

The original total width of the design is 4.425". OK so now, we use the formula

new total width = total original width * desired slot width / original slot width

So to plug in some numbers:

New total width = 4.425" * 0.057" / 0.125" or 2.030112", rounded to 2.03"

  • Set the width in the ruler tool to 2.03" and you’re done.

Perfectly scaled.

Happy cutting!

42 Likes

Thank you @evansd2 for the very clear explanation of the process of scaling down (or up) a design. Also I am impressed with your patience and skill assembling the resulting tiny house. :slightly_smiling_face:

17 Likes

Thanks again for the explainer. This should help the people that ask “can i scale this” about catalog designs.

  • Yes if you’re scaling to a different material size.
  • No if you’re just looking for double with the same material size. I mean, you CAN, but you need to ungroup the parts at that point and adjust all the slots and tabs
17 Likes

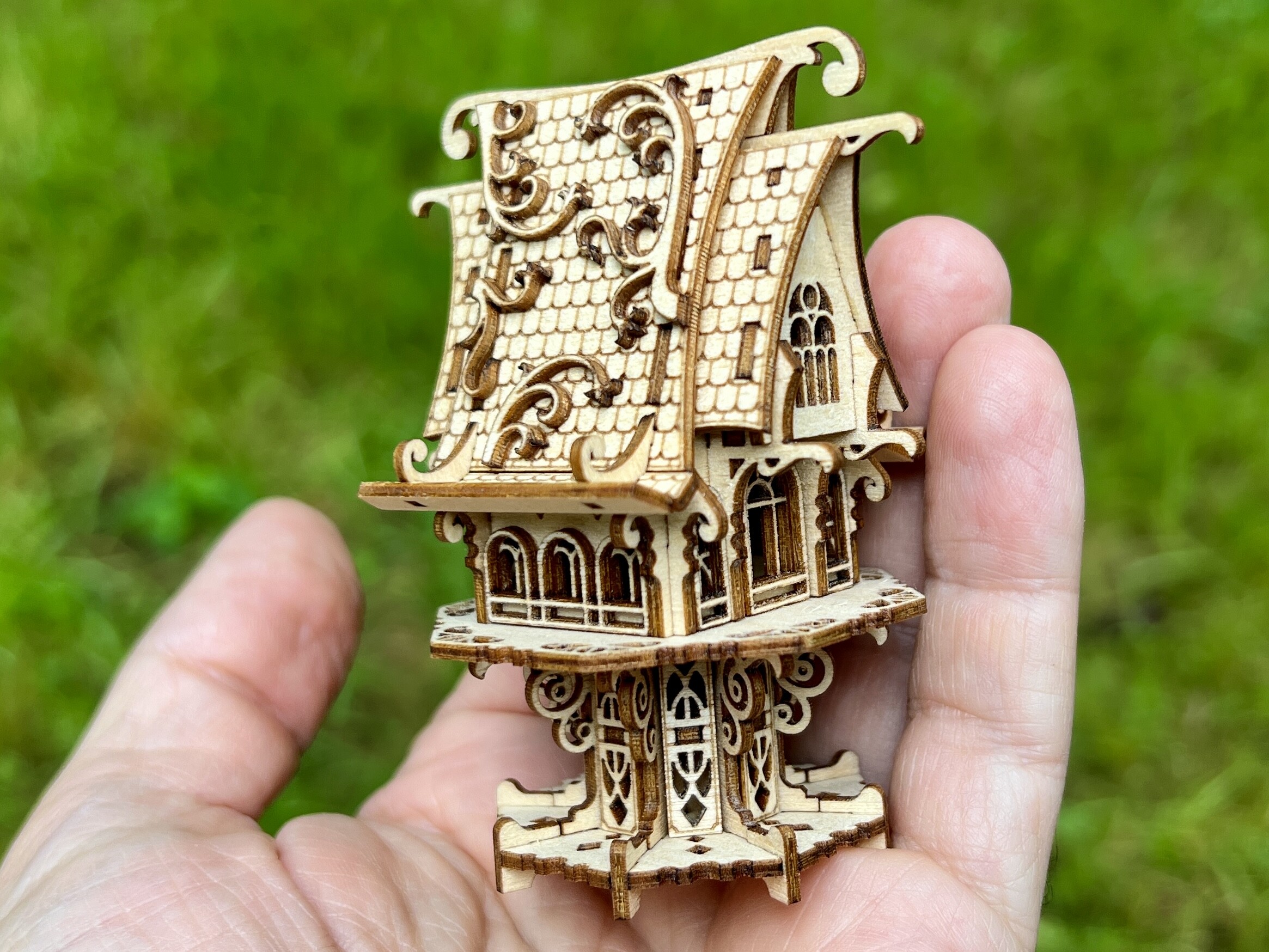

It was a little tricky, mostly because you have to use tiny amounts of glue on some parts. I use a needle bottle (previously discussed here) and it went pretty smoothly. It’s a clever design.

It was also a bit fiddly because I chose to go with a fairly good friction fit on the slots. Not much margin for error and you have to align some slots semi-blind due to the way it’s assembled. I’ll admit to a bit of grumbling, but it all came together. If you’re committed to gluing every part then you could go with a wider slot and make assembly simpler, but I was trying to avoid glue where possible.

Irony: I ended up gluing almost everything. :slight_smile:

Yeah there’s just no good way to do that without an external editor and you can’t export catalog designs. This is why I use clones for my slots when designing things, I can easily resize the slots to accommodate different material thicknesses without scaling the entire design.

The good news is that I wanted the house to be smaller, so it all worked out! :slight_smile:

16 Likes

Ab fab. You made a garden house for crickets :grin:

16 Likes

I’ve bookmarked this so I can easily refer to your formula for scaling. Thank you so much for your dedication to all GF users. You rock! And that tiny house is super adorable!

14 Likes

I have to say, that is adorable! I love tiny things!

12 Likes

I love this - I want to build a full sized version.

13 Likes

Awesome write up. Thanks for sharing.

12 Likes

Free with premium so go for it!

13 Likes

Thanks for this, that’s just so adorable and the scaling method is going to save me some time and heartbreak.

10 Likes

Unless they mean human size! Now I’m curious how tall the entire thing would be if the slot was for a 2x4/6/8…

*Sadly only ~30" wide at the base circle so not human sized…really fancy rat house though! Or really small cats :stuck_out_tongue:

11 Likes

I’m trying to figure out how to scale it to our other lot here. Probably need an architect to draw up real plans for the builder & permits. Don’t think they’ll take the lasered version and let me say - just make it 100 times bigger :smile: But it would make an awesome guest house or rental unit.

14 Likes

I do the same thing but not only for 1/2-size or similar. When I started using PureBond sheets as my go-to material, they are sold as 5/32 but not quite. Regardless, they were thicker than PG maple, for example, so I would adjust the overall scale of a design to suit.

9 Likes

Can you describe what this means? I frequently find myself in this situation.

Thank you!!

Great write up!

7 Likes

I wrote it up on the forum, let me dig up the thread. Aha, here we go, from 2019. It covers the concept of clones and what they can do you you. It’s a bit broader than just slots, but that’s ok.

8 Likes

Before I cut out the slots, I save my file and make a dupe of it, to keep my original file as-is. Then cut the slots out. That way if I want to make different slots later, I still have my file that I can easily edit. (I mean, it’s not the end of the world if you have to remove the slots to restore the file back at it’s original but it’s nice to not have to do that.)

8 Likes

I really like this method, I hadnʻt done it before.

6 Likes

Some of my designs have hundreds of parts and over a thousand slots.

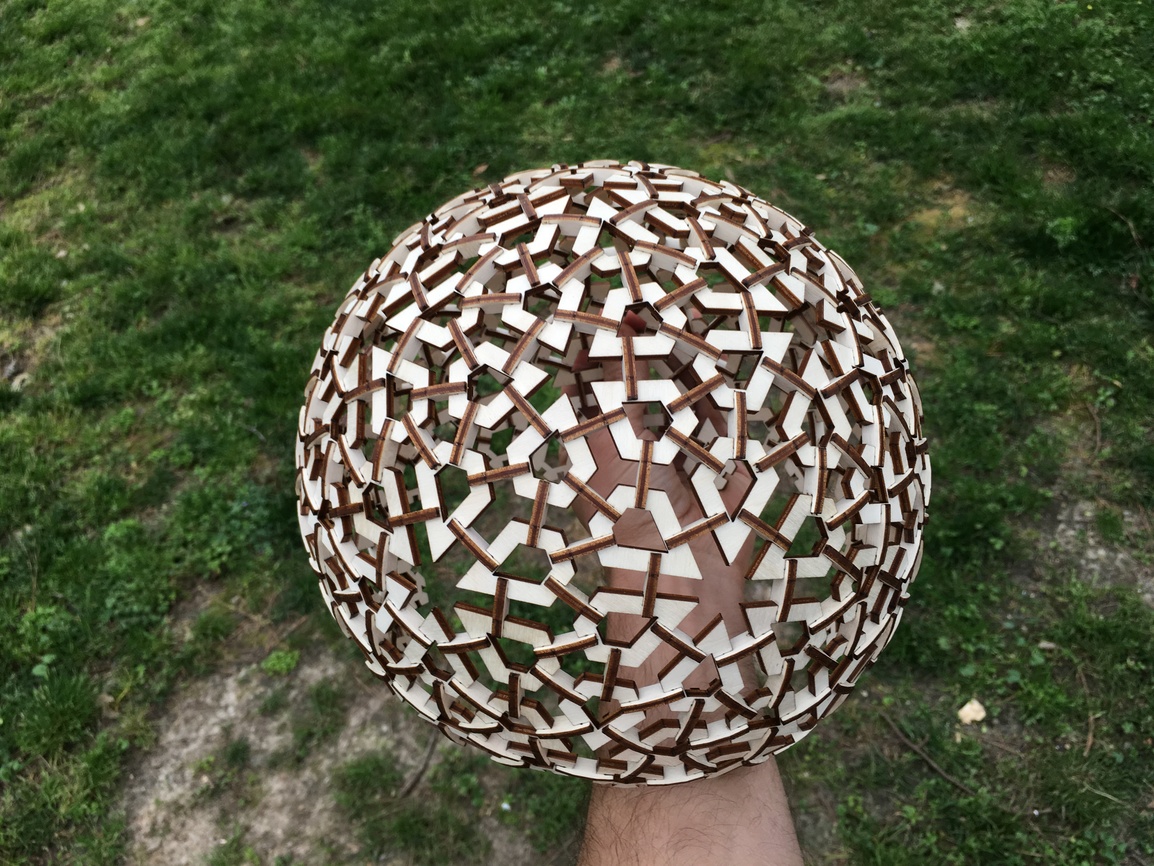

That’s end of the world. Here’s one with 1800 slots.
